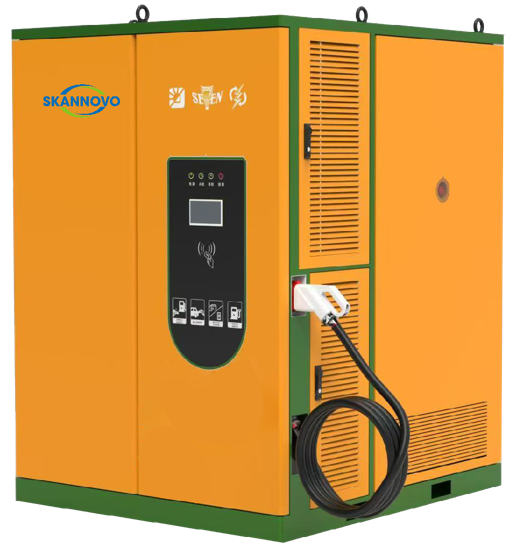

Mobile Power Station 261kwh/120kw

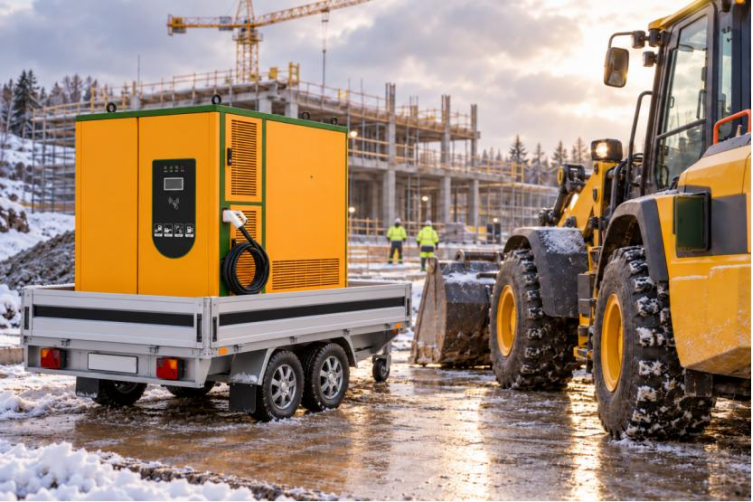

Our mobile power station combines the charging station and the battery energy storage and integrates them into a single unit. It has a light weight and a compact size, and specifically designed and customized according to the Swedish traffic regulation to fit into a mobile usage. It is made for the Nordic weather conditions with very good corrosion protection. It is easier to move around with a fork lift or a crane, and gives strong protection against any possible collision. It is free of installation with good mobility.
The mobile power station can be used with both on grid and off grid modes. This means that it can be either connected to a power grid, or standalone being disconnected from the grid. When it is in the on-grid mode, the power output is the combined sum from both the grid and the battery. This provides a solution for turning a low power connection into a high power connection.
Technical specification
Product models | PS261 |
Battery capacity | 261kwh |
Rated power | 130kw |
Rated voltage | 832V |
Input voltage AC | 3~ 400VAC |
Input frequency AC | 50/60 Hz |
Input connector AC | CEE 3~, 63A |
Input connector DC charging | CCS2 |
Output connector AC | CEE 3~ 63A, 32A, 16A; CEE 1~ 16A |
Output connector DC charging | CCS2, 1pc |
Output power DC charging | 120kw |
Output voltage DC | 150~1000VDC |
Cooling method | Liquid cooling |
Noise | ≤ 65dB |
Communication protocol | OCPP 1.6J |
HMI | 7-inch touch screen |
Charging mode | full charge, target energy, target money, target time |
Payment method | RFID card, QR code, APP |
Installation | Ground installed or mobile |
Charging standards | IEC 61851-23, ISO 15118-2 |
IP rating | IP54 |
Operating temperature | -35°C ~ +55°C |
Relative humidity | 5% ~ 95% |
Network connectivity | 4G, Ethernet |
Safety and protection | Over and under voltage protection, overload protection, current leakage protection, over temperature protection, low temperature protection, grounding protection, lightning surge protection, anti-static protection, emergency stop, insulation control |
EMS | Included |
STS | Optional |
PV integration | Optional, up to 120kw |
Weight | 2500kg |
